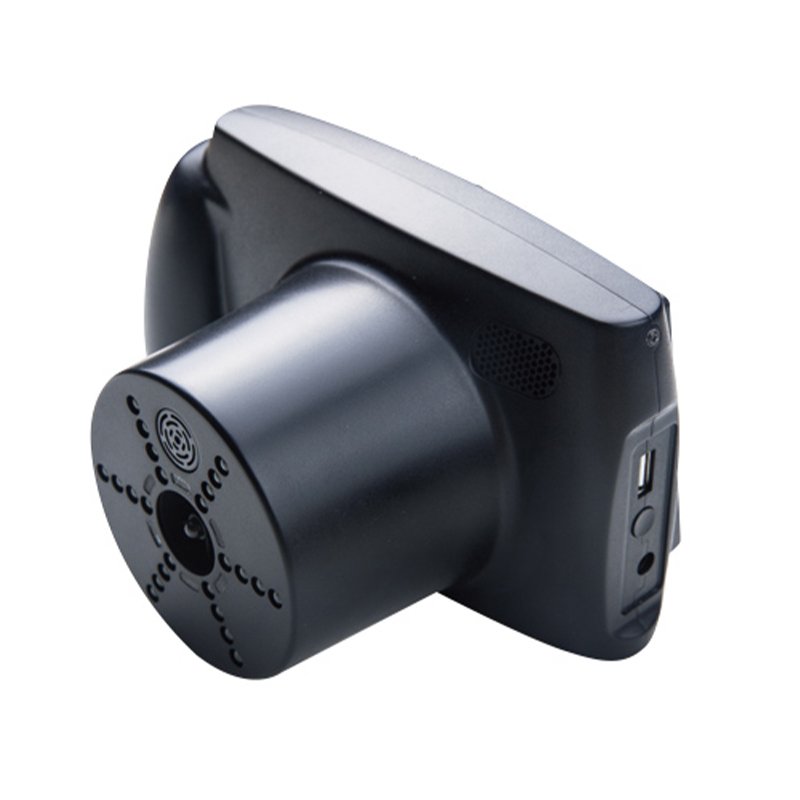

Portable Auto Refractometer SW-800

Using the ARM processor and the latest domestic image processing, the system is fast and the image is clear
Japan’s mature optical path system, humanized automatic mist measurement process, to reduce the error caused by adjustment, more precise measurements
Light rack with integral casting, CNC machining, the measuring system is more stable, good consistency

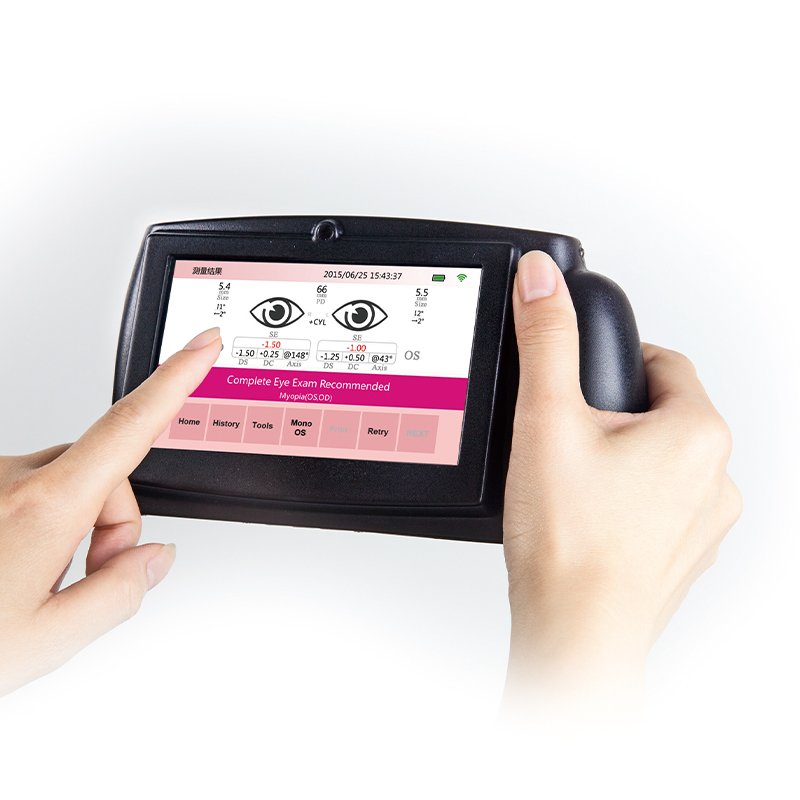

Color LCD display, 5.7 inches man-machine interface is more comfortable
PD Automatic measurement function, automatically PD value
One key lock function, quickly locking mobile platforms
Innovative designs, accord with the structure of human body engineering, to bring customers good aesthetic feeling and comfortable
Data transmission with CV7000, improved efficiency of online

Additional information

Operation mode	Bino/Mono
Optometry	Automatic
DS	Range: -7.50D~+7.50D, Resolution: 0.25D/0.01D
DS	Accuracy: ±0.50D
DC	Range: 0.00D~3.00D, Resolution: 0.25D/0.01D, Accuracy: ±0.50D
Axis	Range: 1°~180° Axis: Range 1°~180°
Axis	Resolution: 1° Accuracy: ±5°
Pupil size	Range: 4.0mm~9.00mm
Resolution	0.1mm Accuracy: ±0.1mm
Pupil distance	Range: 35mm~80mm
Pupil distance	Resolution: 1mm, Accuracy: ±1mm
Gaze	0°~20°
Measuring distance	1m±5cm
Time per measurement	~1s
Fixation target	Light flash, attractive sound
Date interface	Wi-Fi, USB
Battery	Rechargeable lithium batteries, 6 hours of duration, Replaceable
Size	180mmX130mmX110mm
Display	5-inch touch screen
Weight	0.8Kg

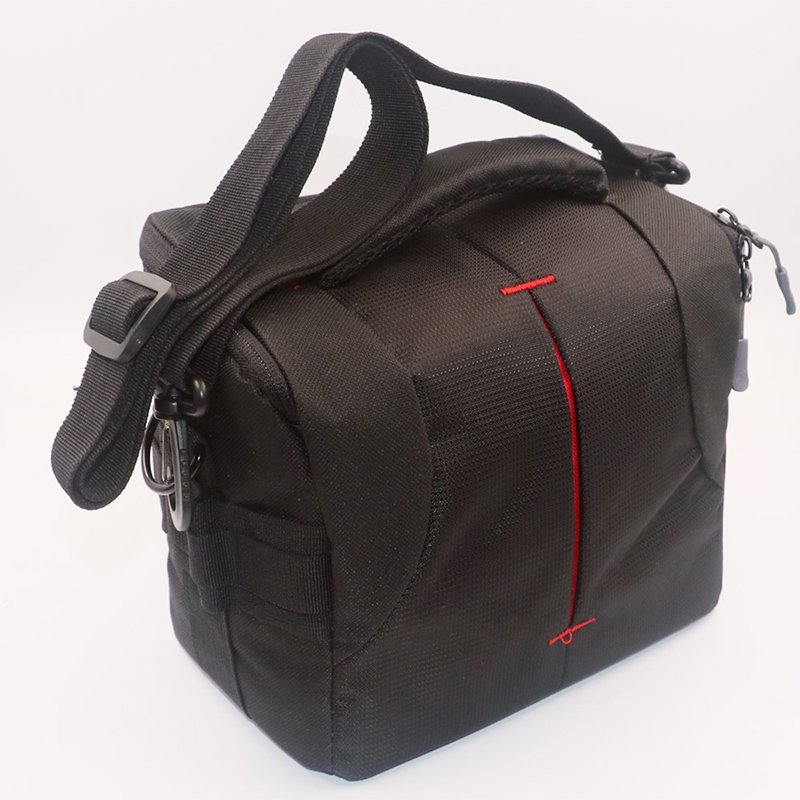

Optional accessories	Camera tripods, printer, etc
